Okara Dryer

  • Capacity: 43.7-317.6 t/d
  • Heat source: Biomass, natural gas, propane, diesel, coal, etc.

[ Application ]: Okara dryer widely used for drying Okara, bean dregs, brewer grains, potato residue, sweet potato dregs, cassava pulp, tapioca slag, etc.

LEAVE US A MESSAGE

Feel free to contact us for a quote, we will get intouch with you as soon as possible

LEAVE US A MESSAGE

INTRODUCTION

Get Quotation

Okara is the main byproduct of soybean processing, is a kind of material with big water and oil combining performance. After being processed, it has the following advantages: fresh bean dregs' water content is about 90%, its nutritional ingredient is higher than many inferior dregs; the crude protein content is high, especially in hot summer and high temperature, it is easily rotted and mildewed. Dry bean dregs' crude protein content is three times higher than that of the unhulled rice. It is suitable for nutrition feed for pig, chicken, duck, etc.

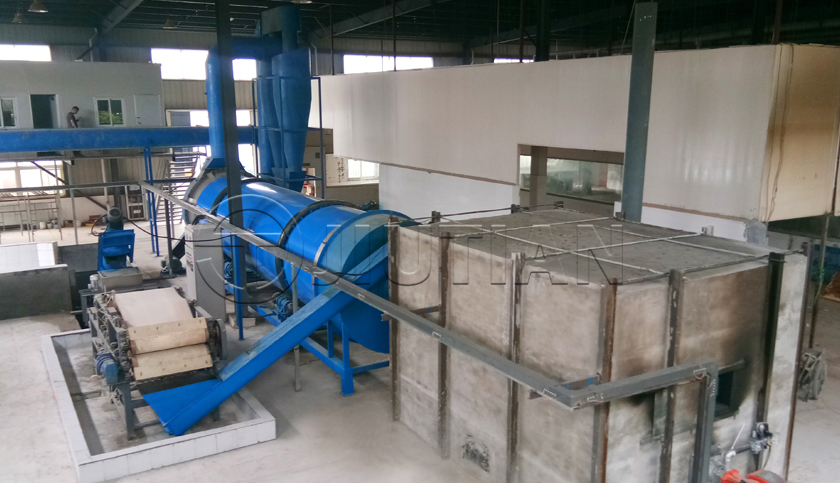

Bean dregs dryer (Okara dryer)mainly consists of the heat source(hot blast stove or gas producer furnace), material feeder(beater), rotary drying roller, discharger, induced draft fan, driving device, unloader, and power distribution cabinet. After a certain degree of dehydration and scattering, wet bean dregs enters into the drying roller through the material feeder. Under the stirring of the lifting plates and shoveling plates that distribute evenly inside the roller, the bean dregs scatter evenly and contacts with hot air sufficiently in the drying area. This speeds up the drying heat transfer and mass transfer. Wet air is pumped by air-inducing device, which avoids material from being wet again.

PARAMETERS

Contact Us Now
Specification Input Capacity(t/d) Output(t/d) Evaporation Capacity(t/h) Raw Material Moisture(%) Dried Material Moisture(%) Drying temperature(℃) Total Power(kw) Total Weight(kg) Area
JTZG1208 43.7 25.7 0.75 (Mechanical dehydration to around 68%, and then dry by dryer) 10% (adjustable) 350-450℃ 55 25000 5m*20m
JTZG1408 52.5 30.9 0.90 75 27000 5m*20m
JTZG1610 75.8 44.6 1.30 95 28500 6m*22m
JTZG2010/3 169.0 99.4 2.90 140 33500 8m*25m
JTZG2210/3 186.5 109.7 3.20 170 38500 8m*25m
JTZG2510/3 215.5 126.7 3.70 210 45000 10m*28m
JTZG2512/3 262.2 154.2 4.50 260 60000 10m*30m
JTZG2912/3 317.6 186.8 5.45 300 80000 10m*30m

STRUCTURE DRAWING

E-mail: jiutian@jiutian-dryer.com
Okara Dryer Working Principle Okara Dryer Working Principle

RALATED CASES

The equipment is suitable for a variety of materials,Welcome to consult customer service at any time, we will customize the equipment according to your needs.

Click To Get Quote View More Case Scenes
